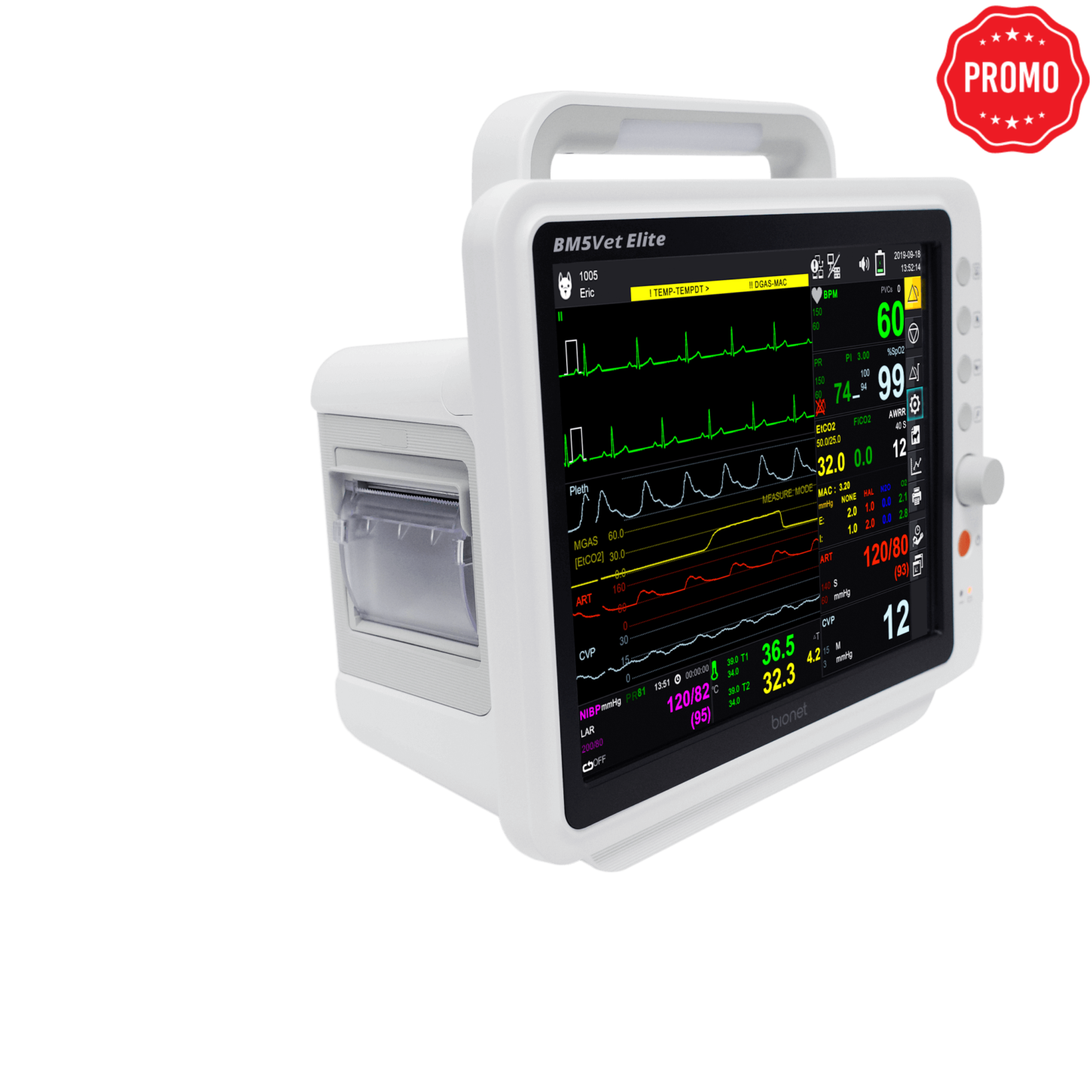

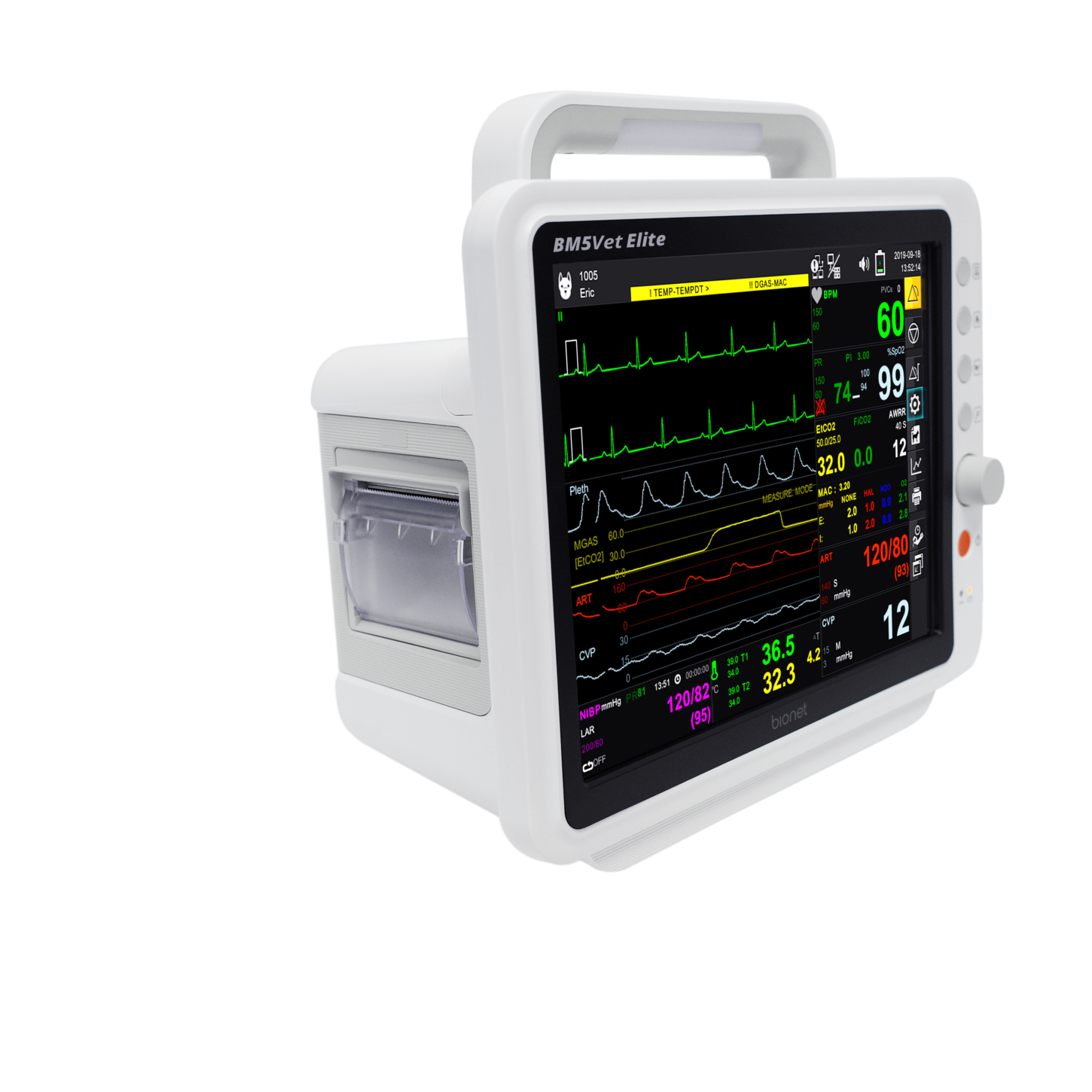

BM5Vet Elite

Maximum Versatility

Product Highlights

Multi-Parameter

ECG, SpO2, NIBP, Respiration, 2 Temperatures, and Optional 2 IBPs

Optional EtCO2

Mainstream/Sidestream EtCO2 or Bionet Dual Gas sensor

Arrhythmia Analysis

13 kinds of arrhythmia analysis

Touch Screen

10.4″ color TFT touch screen with 6 wave forms

Central Monitoring

BT-Link Pro / Mobile for real-time monitoring and data recording

Best Warranty

Industry’s longest warranty – 4 years

Quick Link

wdt_ID	Type	Download
1	Leaflet	Download
2	User Manual	Download
3	Bionet BM Vet Elite Series Accessory List	Download
4	NIBP Guideline	Download
6	SunTech Advantage VET Paper	Download
8	Bionet Veterinary Monitor Power and Battery Guide	Download
9	Bionet Veterinary Monitor BM Vet Elite Series Quick Guide	Download
10	Bionet Dual Gas Module Quick Guide	Download
11	Quick Reference Guide for Networking the BIONET BM Vet Elite Series	Download

wdt_ID	Feature	Specification
73	Display, Resolution	10.4' Wide color TFT LCD, (800 x 600 pixels)
74	Dimension, Weight	276 (W) x 262 (H) x 176 (D) mm, Approx. 4 kg
75	Trace	6 waveforms: 2ECG, SpO2, RR or EtCO2, 2IBP Sweep speed : 6.25, 12.5, 25, 50 mm/sec
77	Indicators	Categorized alarms (3 priority levels) Visual alarm lamp handle QRS beep & SpO2 pulse beep Percent(%) SpO2 pitch tone Battery status, external power LED Touch screen, rotary knob
78	Interfaces	Power supply: AC 100 - 240V (50/60Hz) DC input connector : 18VDC, 2.8A LAN digital output for transferring data External HDMI monitor connection USB barcode reader USB memory data storage / Software Upgrade
79	Battery	Rechargeable Li-ion battery, 10.8V, 3250mAh 2 hours for continuous operation
80	Thermal Printer (Optional)	Speed: 25, 50mm/sec paper width: 58mm
82	Data Storage	168 hours trends, 20 cases of 10 sec alarm waveform
83	Language	English, French, Spanish, Italian, German, Chinese, Russian, Czech, Polish, Turkish, Romanian, Portuguese, Bulgarian, Hungarian, Korean, Japanese, Greek
84	Standard Accessories	3 lead vet ECG cable - 1 ea NIBP extension hose (3m) - 1 ea NIBP vet cuff Neonate disposable #1 - #5 - 1 set NIBP vet cuff infant (reusable) - 1 ea SpO2 extension cable (2m) - 1 ea Esophageal ECG probe with temperature - 1 ea Extension cable for esophageal probe - 1 ea Transflectance SpO2 probe - 1 ea Temperature probe (rectal/esophageal) - 1 ea Reusable multisite SpO2 probe - 1 ea DC adapter (18 VDC, 2.8 A) - 1 set BT-Link Pro automated record keeping software - 1 ea
85	Optional Accessories	5 lead vet ECG cable Temperature probe (skin) IBP disposable preasure transducer kit Mainstream EtCO2 airway adapter kit Sidestream EtCO2 airway adapter kit ECG alligator clip (5ea) 3 lead ECG cable (snap type) Dual Gas accessories (water trap, patient sample line/adapter, mount)
86	Optional Module	Mainstream EtCO2 module (sensor) Sidestream EtCO2 module (sensor) Dual Gas module (sensor) IBP transducer connection cable

wdt_ID	ECG	Specification
88	Lead Type	3-lead 5-lead (option)
89	Lead Selection	3-lead: I, II, III 5-lead (option): I, II, III, aVR, aVL, aVF, V
91	ECG Waveforms	3-lead: 1 channel 5-lead (option): 1/2/7 channels
93	Heart Rate Range	30 to 300 BPM
94	Heart Rate Accuracy	± 1 BPM or ± 1%, whichever is greater
95	Sweep Speed	6.25, 12.5, 25, 50 mm/sec
96	Filter	Diagnosis: 0.05 ~ 150 Hz Monitoring: 0.5 ~ 40 Hz Moderate: 0.5 ~ 25 Hz Maximum: 5 ~ 25 Hz
97	S-T Segment Detection Range	-2.0 to 2.0 mV
98	Arrhythmia Analysis	ASYSTOLE, VTACH, V-FIB, BIGEMINY, ACCVENT, COUPLET, IRREGULAR, PAUSE, PVC, RONT, TRIGMINY, VBRADY, SHORTRUN
99	Protection	Against electrosurgical interference and defibrillation

wdt_ID	Respiration	Specification
100	Method	Thoracic impedance
101	Channel Selection	RA-LA or RA-LL
102	Measurement Range	5 - 120 breath per minute
103	Accuracy	±1 breath per minute
104	Apnea Alarm	Yes

wdt_ID	SpO2	Specification
105	Saturation Range	0 to 100 %
106	Saturation Accuracy	70 to 100% ±2 digits, 0 to 69% unspecified
107	Pulse Rate Range	18 to 450 BPM
108	Pulse Rate Accuracy	±2 BPM

wdt_ID	NIBP - Suntech	Specification
110	Method	Oscillometric
111	Operation Mode	Manual / Automatic / Continuous
112	Pressure Range	0 to 300mmHg (accuracy : ±3mmHg)
113	Measurement Range	Systolic: 40 to 260 mmHg MAP: 26 to 220 mmHg Diastolic: 20 to 200 mmHg
114	Initial Inflation Pressure	Large animal mode: 160mmHg (default), Variable from 120 - 280mmHg Small animal mode: 160mmHg (default), Variable from 60 - 280mmHg
115	Pulse Rate Range	25-300 BPM (Beat Per Minute)

wdt_ID	Temperature	Specification
117	Channels	2
118	Measurement Range	0 to 50°C (32°F to 122°F)
119	Accuracy	25 to 50°C: ±0.1°C 0 to 24°C: ±0.2°C
120	Compatibility	98ME04GA603 temperature probes

wdt_ID	IBP (Option)	Specification
126	Channels	2
127	Measurement Range	-50 to 300 mmHg
128	Accuracy	4% of reading or ± 4 mmHg, whichever is greater
129	Pulse Rate Range	0 to 300 BPM
130	Zero Balancing Range	Range: ± 200 mmHg Accuracy: ± 1 mmHg Drift: ± 1 mmHg over 24 hours
131	Transducer Sensitivity	5μV/V/mmHg

wdt_ID	Mainstream EtCO2 - Respironics (Option)	Specification
126	Measurement Range	0 to 150 mmHg, 0 to 19%
127	Accuracy	0 - 40 mmHg ± 2 mmHg 41 - 70 mmHg ± 5% of reading 71 - 100 mmHg ± 8% of reading 101 - 150 mmHg ± 10% of reading
128	Respiration Rate	0 to 150 breaths per minute
129	Respiration Accuracy	± 1 breath per minute

wdt_ID	Sidestream EtCO2 - Respironics (Option)	Specification
121	Measurement Range	0 to 150 mmHg, 0 to 19%
122	Accuracy	0 - 40 mmHg ± 2 mmHg 41 - 70 mmHg ± 5% of reading 71 - 100 mmHg ± 8% of reading 101 - 150 mmHg ± 10% of reading
123	Respiration Rate	2 to 150 breaths per minute
124	Respiration Accuracy	± 1 breath per minute

wdt_ID	Dual Gas - Bionet (Option)	Specification
110	Method	Sidestream
111	Gas	CO₂, Iso, Sev, Enf, Hal, Des
112	Range, Accuracy	CO₂: 0-10%, ± (0.2 vol% + 4% relative) Iso/Sev/Enf/Hal: 0-6%, ± (0.15% vol% + 4% relative) Des: 0-18%, ± (0.15% vol% + 4% relative)
113	Respiration Rate	0-150 BPM ±1 BPM

	Item Code	Item Description	Buy Now
1	B-CBL-EP	BM5Vet and BM7Vet ECG extension cable for esophageal probe & 3 lead ECG cable	Buy Now
2	B-AECG5	5 lead All In One ECG cable	Buy Now
3	B-WIRE-N	3 lead ECG cable (alligator type) – New	Buy Now
4	B-SPCBL-N	SpO2 extension cable	Buy Now
6	B-SPO2-R	Transflectance SpO2 probe for veterinary (black)	Buy Now
7	B-SPO2-V	SpO2 multi-site Y sensor	Buy Now
8	B-NBPCBL	NIBP extension tube	Buy Now
9	B-CCUFF	NIBP child cuff (arm circumference: 20.5~28.5 cm)	Buy Now
10	B-PCUFF	NIBP pediatric cuff (arm circumference: 13.8~21.5 cm)	Buy Now
11	B-ICUFF	NIBP infant cuff (arm circumference: 9~14.8 cm)	Buy Now
12	B-EPRB-XS	Esophageal probe with 3-lead ECG and temperature, extra small size ● 20 inches - from where the transparent tube goes into the gray plastic to the end of the probe ● 1.75 inch apart - between the metal contacts	Buy Now
13	B-EPRB-M	Esophageal probe with 3-lead ECG and temperature, medium size ● 36 inches - from where the transparent tube goes into the gray plastic to the end of the probe ● 2.75 inches apart - between the metal contacts	Buy Now
14	TEM-PRV-R	Temperature probe (Esophageal/Rectal Type) * Veterinary use only	Buy Now
15	TRANS	Power transformer (DC adaptor, output: +18V, 2.8A)	Buy Now
16	PC-A (V)	Power cable	Buy Now
17	BM-BAT-3&5(N)	Battery Console Li-ion 1 Line, 3 Cell, 10.8V, 3250mA/h	Buy Now
19	B-NCUFF-SET	NIBP neonate cuffs (1 of each, #1 - #5)	Buy Now
20	B-NCUFF1	NIBP neonate cuff #1	Buy Now
21	B-NCUFF2	NIBP neonate cuff #2	Buy Now
22	B-NCUFF3	NIBP neonate cuff #3	Buy Now
23	B-NCUFF4	NIBP neonate cuff #4	Buy Now
24	B-NCUFF5	NIBP neonate cuff #5	Buy Now
25	BM-PP	BM paper (10 rolls/box)	Buy Now
26	MX4810	C-Fusor® 1000ml pressure infusor: complete with squeeze bulb and pressure gauge	Buy Now
27	MX95114_IC-6P-MX0	AAMI IBP Adapter Cable - Compatible with Transtar reusable single channel cable(MX95114)	Buy Now
28	MX800	Modular transducer mounting plate (1 each)	Buy Now
29	MX240	Pole clamp for mounting a transducer plate (fits 3/4" to 1-1/2" I.V. pole)	Buy Now
30	MX9505T	TranStar® 80" single line monitoring kit	Buy Now
31	B-RMCO2	CAPNOSTAT 5 mainstream CO2 sensor (includes one of each single use airway adapter, items 6063-00 and 6312-00)	Buy Now
32	B-RSCO2-V	LoFlo sidestream CO2 sensor (includes one of each airway adapter, items 3473-ADU-00 and 3473INF-00)	Buy Now
33	6063-00	Single patient use adult airway adapter: ET tube > 4 mm	Buy Now
34	6312-00	Single patient use neonatal airway adapter: ET tube ≤ 4 mm	Buy Now
35	3473ADU-00	Airway adapter kit with dehumidification, up to 120 hours – adult/pediatric: ET tube > 4 mm	Buy Now
36	3473INF-00	Airway adapter Kit with dehumidification, up to 120 hours – infant/neonate: ET tube ≤ 4 mm	Buy Now
50	3475-00	Sampling line with male Luer adapter	Buy Now
51	BM-CART-H	BM series rolling cart with cable hanger (90-day warranty)	Buy Now
53	USB-WIFI24	USB WiFi dongle (2.4 GHz)	Buy Now
54	B-SPO2-CLIP	Replacement clip for B-SPO2-V or OXW-SPO2-V	Buy Now
55	BM-WM	Wall Mount for BM Series Monitor	Buy Now

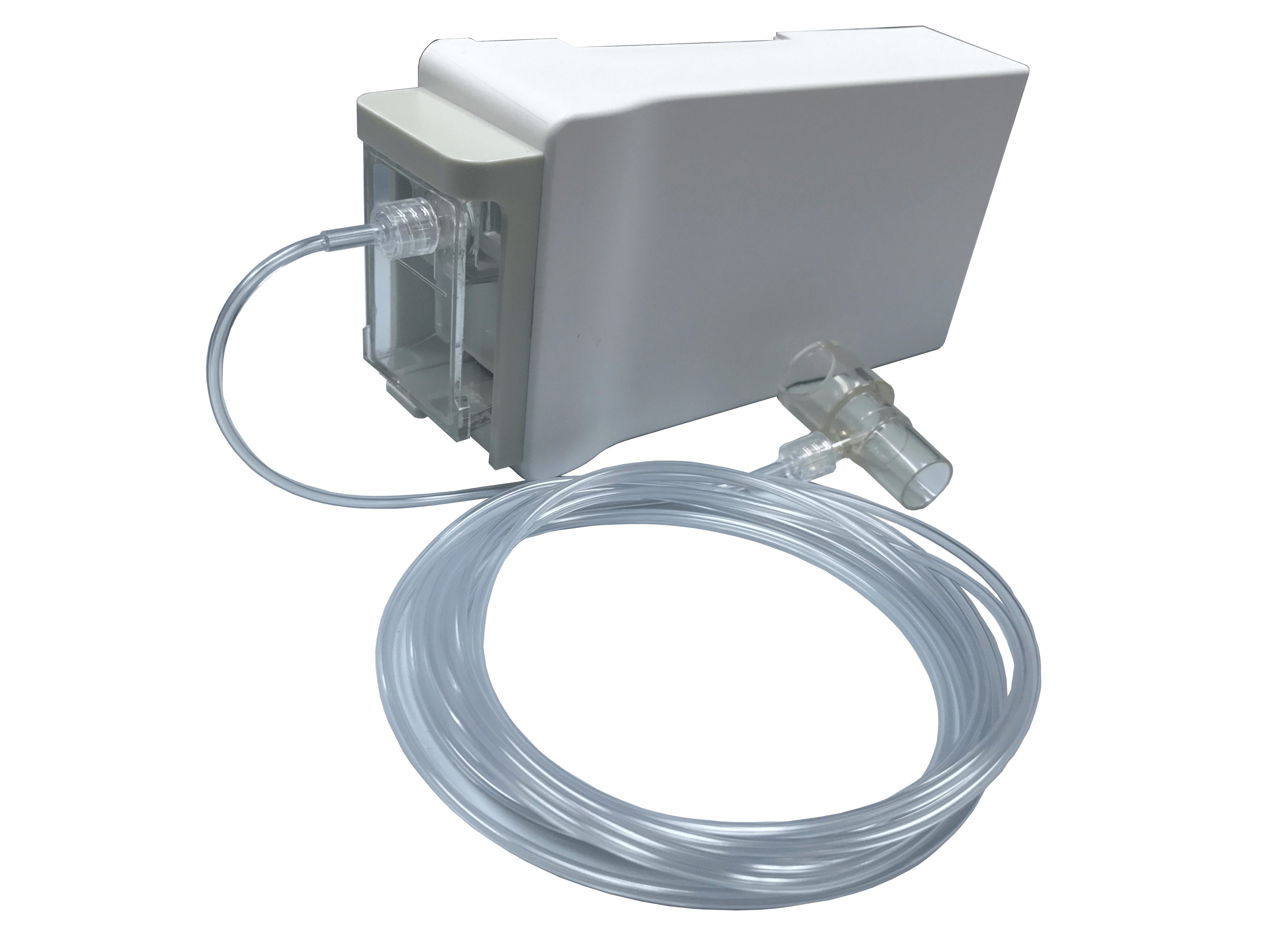

56	DG-SENSOR	Bionet dual gas module set Includes: dual gas module, water trap (1 ea.), sample line (1 ea.), airway adaptor (straight - 1 ea.), mounting kit (1set)	Buy Now

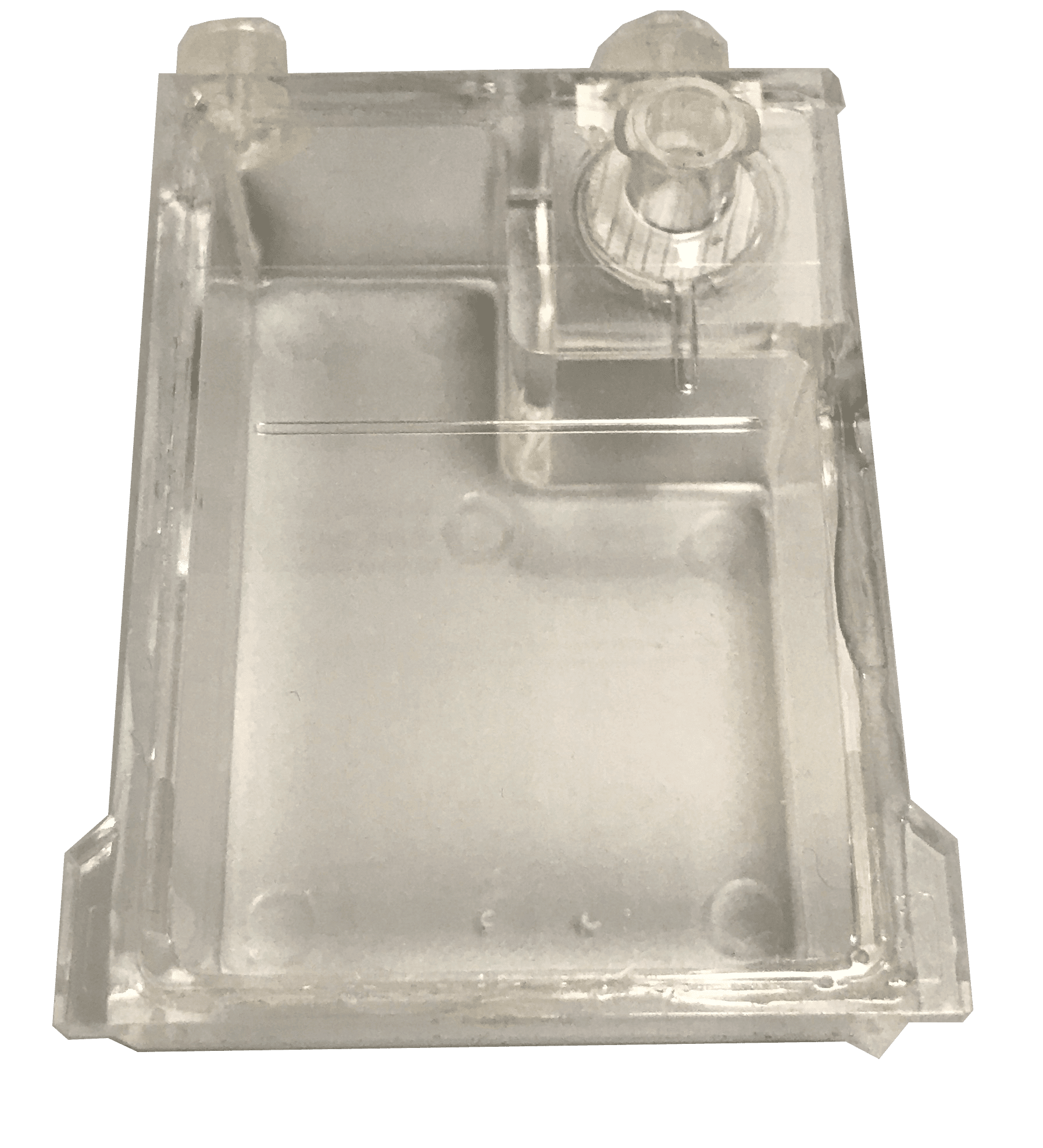

57	DGA-WT	Water trap	Buy Now

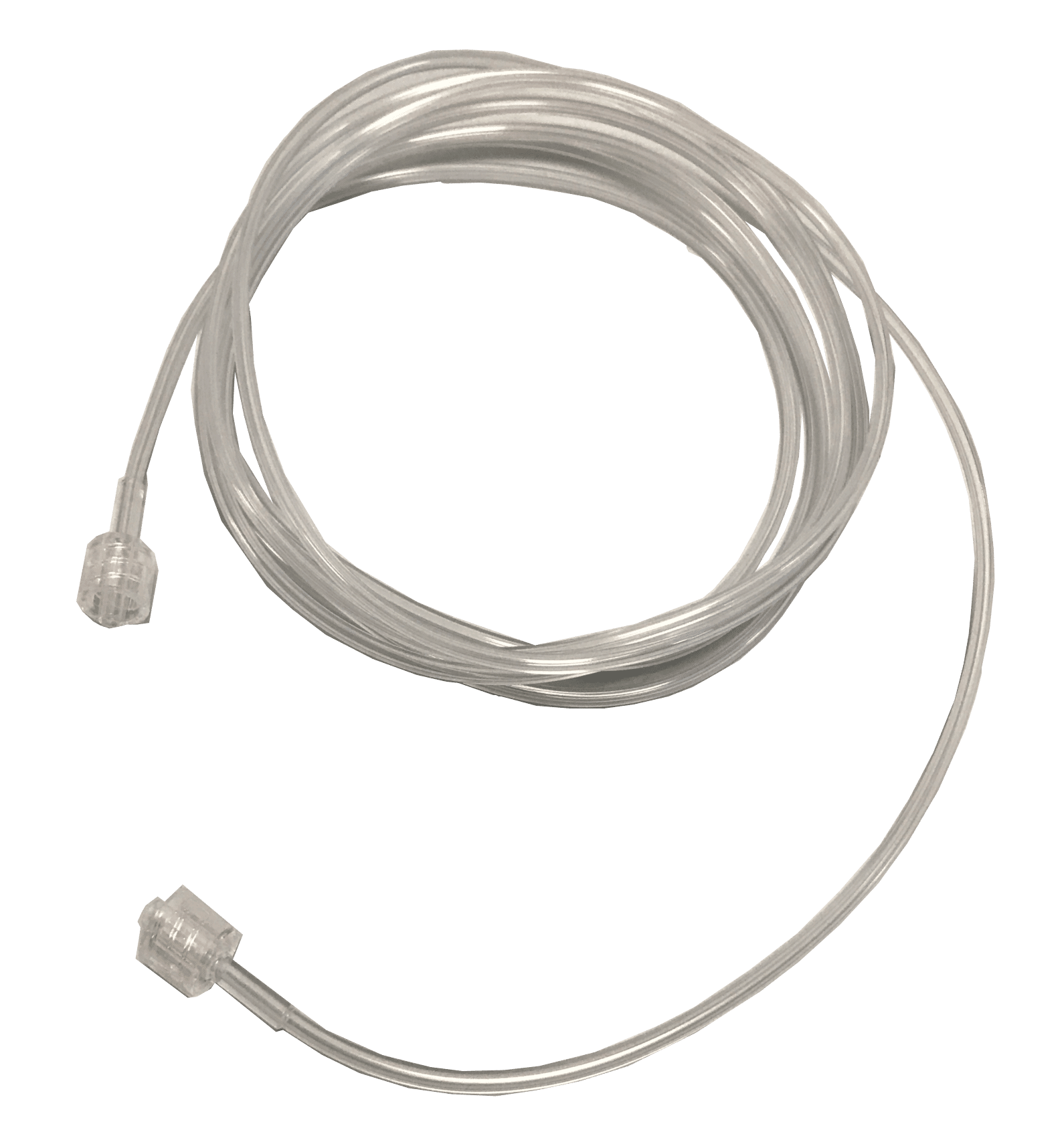

58	DGA-SL	Sample line with Luer lock (8')	Buy Now

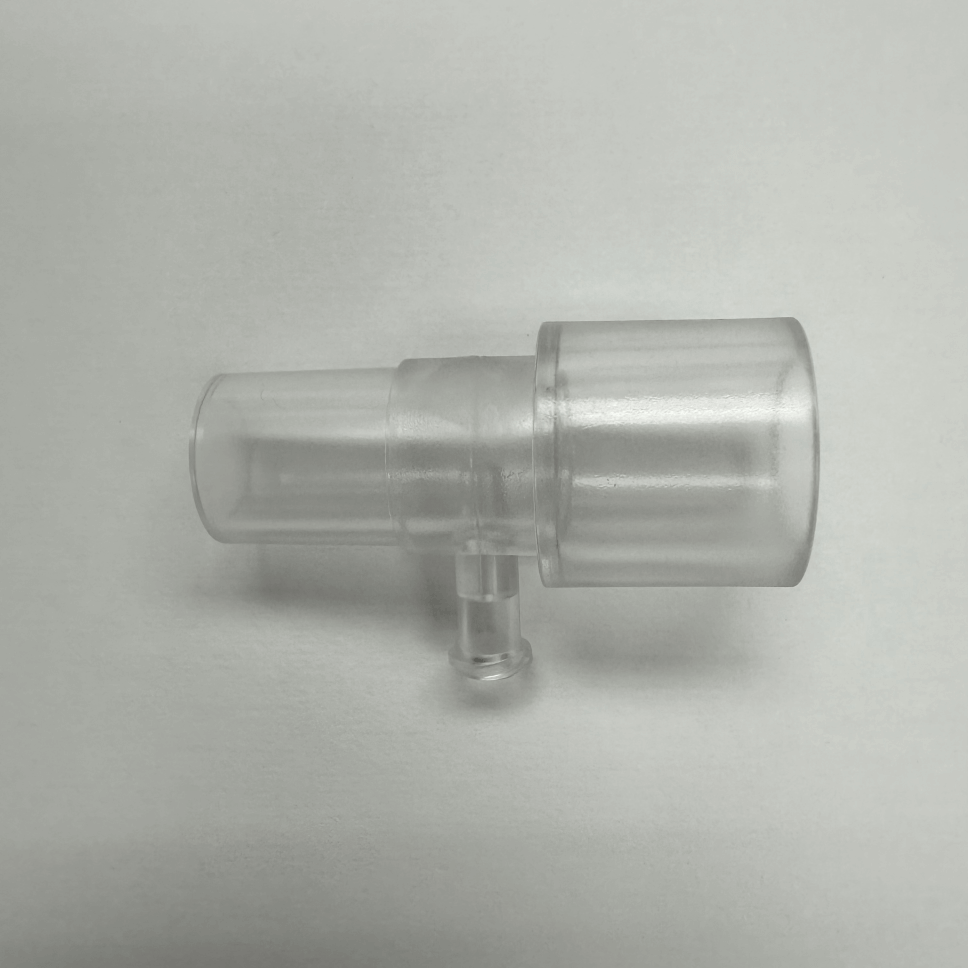

59	DGA-AAS	Airway adapter (straight)	Buy Now

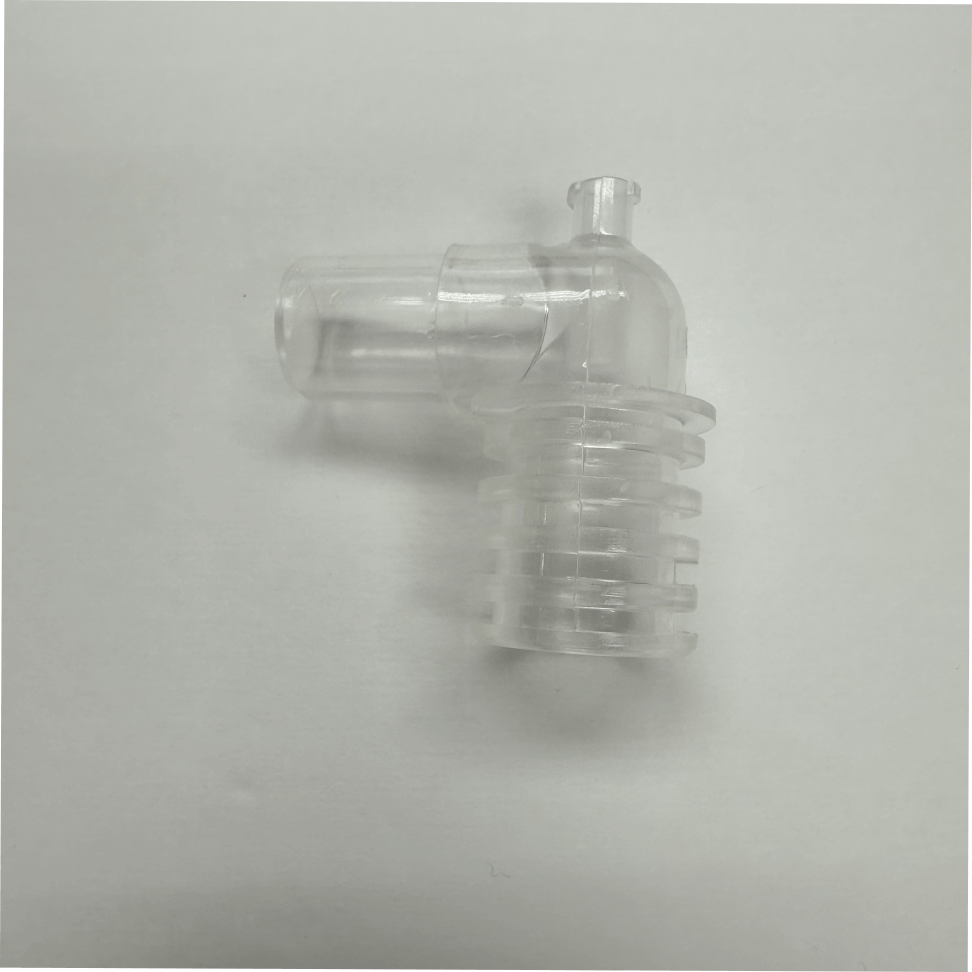

60	DGA-AAL	Airway adapter (L type)	Buy Now
61	B-WIRE-SA	3 lead ECG cable (Snap type)	Buy Now
62	B-ME-S	ECG monitoring electrode snap type (30 electrodes/pouch)	Buy Now
63	B-AECG	3-Lead All in one ECG Cable	Buy Now
64	ECG-GEL	ECG GEL (260ML)	Buy Now
