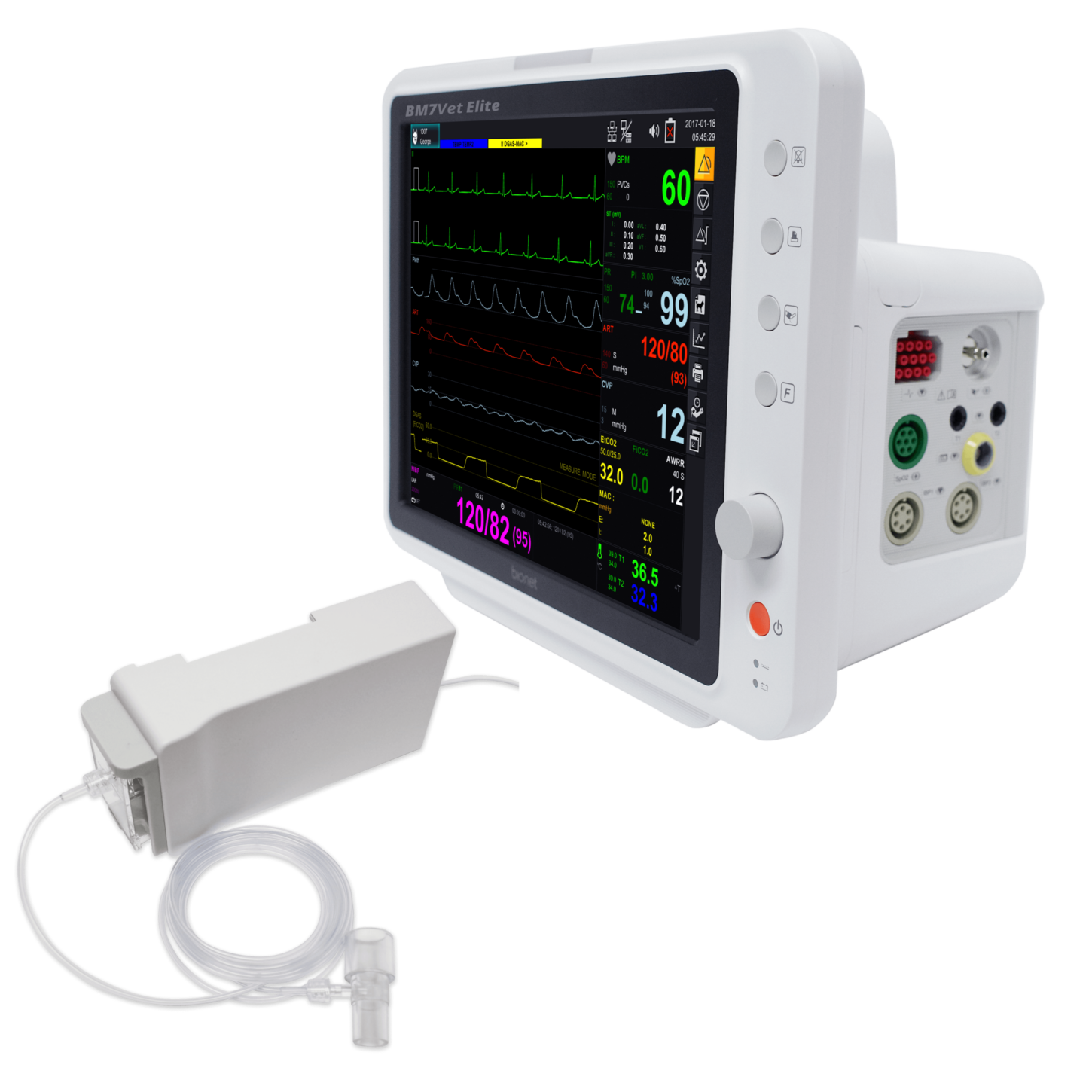

BM7Vet Equine
Ultimate Performance
The new BM7Vet Equine includes a Dual Gas Capnography module which measures both ETCO2 and Anesthetic Gas concentration. Also included is a complete direct, invasive arterial blood pressure kit with necessary monitoring components to measure invasive blood pressure. For your non-invasive blood pressure monitoring needs, we include a wide range of cuff sizes. Our 5 lead ECG cable provides 48 hour full disclosure ECG recording of up to 7 concurrent channels. 12.1” wide color monitor displays all the vital signs that you want in different colors. Interface the BM5Vet Elite Equine with BT-Link PRO to record and manage all monitor data.
Close
The new BM7Vet Equine includes a Dual Gas Capnography module which measures both ETCO2 and Anesthetic Gas concentration. Also included is a complete direct, invasive arterial blood pressure kit with necessary monitoring components to measure invasive blood pressure. For your non-invasive blood pressure monitoring needs, we include a wide range of cuff sizes. Our 5 lead ECG cable provides 48 hour full disclosure ECG recording of up to 7 concurrent channels. 12.1” wide color monitor displays all the vital signs that you want in different colors. Interface the BM5Vet Elite Equine with BT-Link PRO to record and manage all monitor data.
Close
Product Highlights
Multi-Parameter
ECG, SpO2, NIBP, Respiration, 2 Temperatures, and 2 IBPs
Dual Gas Sensor
Dual gas sensor measuring ETCO2 and anesthetic gas included
Arrhythmia Analysis
13 kinds of arrhythmia analysis
Touch Screen
12.1″ color TFT touch screen with 4 wave forms
Central Monitoring
BT-Link Pro / Mobile for real-time monitoring and data recording
Best Warranty
Industry’s longest warranty – 4 years
Quick Link
● Materials Download
BM7Vet Equine Multi-Parameter Monitor
| wdt_ID | Type | Download |
|---|---|---|
| 1 | Leaflet | Download |
| 2 | User Manual | Download |
| 3 | Bionet BM Vet Elite Series Accessory List | Download |
| 4 | NIBP Guideline | Download |
| 6 | SunTech Advantage VET Paper | Download |
| 8 | Bionet Veterinary Monitor Power and Battery Guide | Download |
| 9 | Bionet Veterinary Monitor BM Vet Elite Series Quick Guide | Download |
| 10 | Bionet Dual Gas Module Quick Guide | Download |
| 11 | Quick Reference Guide for Networking the BIONET BM Vet Elite Series | Download |
Dual Gas Sensor
Close
● Videos
BIONET BM VET Veterinary Multi-Parameter Monitor – Introduction and Walkthrough
How to connect BT-Link Pro to Bionet Veterinary Monitor
Bionet BT-Link Pro Software Overview
How to use BT-Link Pro Software
How to use BT-Link Mobile for Android
How to use BT-Link Mobile for iOS
Bionet BT-Link Mobile – Server vs Client Mode
Close
● Specifications
General
BM7Vet Elite Multi-Parameter Monitor
| wdt_ID | Feature | Specification |
|---|---|---|
| 73 | Display, Resolution | 12.1' Wide color TFT LCD, (1024 x 768 pixels) |
| 74 | Dimension, Weight | 324 (W) x 257 (H) x 218 (D) mm, Approx. 4.5 kg |
| 75 | Trace | 6 waveforms: 2*ECG, SpO2, RR or EtCO2, 2*IBP Sweep speed : 6.25, 12.5, 25, 50 mm/sec |
| 77 | Indicators | Categorized alarms (3 priority levels) Visual alarm lamp handle QRS beep & SpO2 pulse beep Percent(%) SpO2 pitch tone Battery status, external power LED Touch screen, rotary knob |
| 78 | Interfaces | Power supply: AC 100 - 240V (50/60Hz) DC input connector : 18VDC, 2.8A LAN digital output for transferring data External HDMI monitor connection USB barcode reader USB memory data storage / Software Upgrade |
| 79 | Battery | Rechargeable Li-ion battery, 10.8V, 6500mAh 2 hours for continuous operation |
| 80 | Thermal Printer (Optional) | Speed: 25, 50mm/sec paper width: 58mm |
| 82 | Data Storage | 168 hours trends, 20 cases of 10 sec alarm waveform |
| 83 | Language | English, French, Spanish, Italian, German, Chinese, Russian, Czech, Polish, Turkish, Romanian, Portuguese, Bulgarian, Hungarian, Korean, Japanese, Greek |
| 84 | Standard Accessories | 3 lead vet ECG cable - 1 ea 5 lead vet ECG cable - 1 ea Dual Gas accessories (water trap, patient sample line/adapter, mount) IBP transducer connection cable IBP disposable preasure transducer kit NIBP extension hose (3m) - 1 ea NIBP vet cuff Neonate disposable #1 - #5 - 1 set NIBP vet cuff infant (reusable) - 1 ea NIBP Large Adult Cuff - 1 ea NIBP Adult Cuff - 1 ea SpO2 extension cable (2m) - 1 ea Esophageal ECG probe with temperature - 1 ea Extension cable for esophageal probe - 1 ea Transflectance SpO2 probe - 1 ea Temperature probe (rectal/esophageal) - 1 ea Reusable multisite SpO2 probe - 1 ea DC adapter (18 VDC, 2.8 A) - 1 set BT-Link Pro automated record keeping software - 1 ea |
| 85 | Optional Accessories | Temperature probe (skin) ECG alligator clip (5ea) 3 lead ECG cable (snap type) |
Dual Gas Sensor
| wdt_ID | Feature | Specification |
|---|---|---|
| 1 | CO2 | |
| 2 | - Range | 0 – 100 mmHg; 0 – 13.3 kPa; 0-10% CO2 STPD (standard temperature and pressure dry) |
| 3 | - Accuracy | ± (0.2 vol% + 4% relative) |
| 4 | - Rise Time | 400 ms (average) |
| 5 | Anesthetic Agents | |
| 6 | - Gases | Isoflurane, Enflurane, Halothane, Desflurane, Sevoflurane |
| 7 | - Range | Iso., Enf., Hal., Sev.: 0 – 6% Des.: 0 – 18% |
| 8 | - Resolution | 0 .01% |
| 9 | - Accuracy | ± (0.15% vol% + 4% relative) |
| 10 | - Rise Time | 450 ms (average) |
| 11 | Calibration | Factory calibrated |
| 12 | Power Up Time | 30 sec |
| 13 | Delay Time | < 4 sec |
| 14 | Dimensions | 175mm x 85mm x 50mm (L x W x H) |
| 15 | Respiration | |
| 16 | - Range | 0-150 breaths/min |
| 17 | - Accuracy | ±1 breath/min |
| 18 | Flow Rate | |
| 19 | - Range | 170 ml/min |
| 20 | - Accuracy | ±20ml/min |
| 21 | Environment Condition | |
| 22 | - Operating Temperature | 15 – 35°C |
| 23 | - Storage Temperature | -5 to 50°C |
| 24 | - Ambient Humidity | 15-95% RH |
| 25 | - Ambient Pressure | 70kPa to 106kPa (525mmHg to 795mmHg) |
| 26 | Weight | 400g |
| 53 | Water Removal System | Water trap tank |
| 54 | Sampling Line | Anesthetic gas tolerant standard sample line |
| 55 | Appication | Veterinary use Only Species: Canine, Feline, Equine |
Performance
| wdt_ID | ECG | Specification |
|---|---|---|
| 88 | Lead Type | 3-lead 5-lead |
| 89 | Lead Selection | 3-lead: I, II, III 5-lead: I, II, III, aVR, aVL, aVF, V |
| 91 | ECG Waveforms | 3-lead: 1 channel 5-lead: 1/2/7 channels |
| 93 | Heart Rate Range | 30 to 300 BPM |
| 94 | Heart Rate Accuracy | ± 1 BPM or ± 1%, whichever is greater |
| 95 | Sweep Speed | 6.25, 12.5, 25, 50 mm/sec |
| 96 | Filter | Diagnosis: 0.05 ~ 150 Hz Monitoring: 0.5 ~ 40 Hz Moderate: 0.5 ~ 25 Hz Maximum: 5 ~ 25 Hz |
| 97 | S-T Segment Detection Range | -2.0 to 2.0 mV |
| 98 | Arrhythmia Analysis | ASYSTOLE, VTACH, V-FIB, BIGEMINY, ACCVENT, COUPLET, IRREGULAR, PAUSE, PVC, RONT, TRIGMINY, VBRADY, SHORTRUN |
| 99 | Protection | Against electrosurgical interference and defibrillation |
| wdt_ID | Respiration | Specification |
|---|---|---|
| 100 | Method | Thoracic impedance |
| 101 | Channel Selection | RA-LA or RA-LL |
| 102 | Measurement Range | 5 - 120 breath per minute |
| 103 | Accuracy | ±1 breath per minute |
| 104 | Apnea Alarm | Yes |
| wdt_ID | SpO2 | Specification |
|---|---|---|
| 105 | Saturation Range | 0 to 100 % |
| 106 | Saturation Accuracy | 70 to 100% ±2 digits, 0 to 69% unspecified |
| 107 | Pulse Rate Range | 18 to 450 BPM |
| 108 | Pulse Rate Accuracy | ±2 BPM |
| wdt_ID | NIBP - Suntech | Specification |
|---|---|---|
| 110 | Method | Oscillometric |
| 111 | Operation Mode | Manual / Automatic / Continuous |
| 112 | Pressure Range | 0 to 300mmHg (accuracy : ±3mmHg) |
| 113 | Measurement Range | Systolic: 40 to 260 mmHg MAP: 26 to 220 mmHg Diastolic: 20 to 200 mmHg |
| 114 | Initial Inflation Pressure | Large animal mode: 160mmHg (default), Variable from 120 - 280mmHg Small animal mode: 160mmHg (default), Variable from 60 - 280mmHg |
| 115 | Pulse Rate Range | 25-300 BPM (Beat Per Minute) |
| wdt_ID | Temperature | Specification |
|---|---|---|
| 117 | Channels | 2 |
| 118 | Measurement Range | 0 to 50°C (32°F to 122°F) |
| 119 | Accuracy | 25 to 50°C: ±0.1°C 0 to 24°C: ±0.2°C |
| 120 | Compatibility | 98ME04GA603 temperature probes |
| wdt_ID | IBP | Specification |
|---|---|---|
| 126 | Channels | 2 |
| 127 | Measurement Range | -50 to 300 mmHg |
| 128 | Accuracy | 4% of reading or ± 4 mmHg, whichever is greater |
| 129 | Pulse Rate Range | 0 to 300 BPM |
| 130 | Zero Balancing Range | Range: ± 200 mmHg Accuracy: ± 1 mmHg Drift: ± 1 mmHg over 24 hours |
| 131 | Transducer Sensitivity | 5μV/V/mmHg |
| wdt_ID | Dual Gas - Bionet | Specification |
|---|---|---|
| 110 | Method | Sidestream |
| 111 | Gas | CO₂, Iso, Sev, Enf, Hal, Des |
| 112 | Range, Accuracy | CO₂: 0-10%, ± (0.2 vol% + 4% relative) Iso/Sev/Enf/Hal: 0-6%, ± (0.15% vol% + 4% relative) Des: 0-18%, ± (0.15% vol% + 4% relative) |
| 113 | Respiration Rate | 0-150 BPM ±1 BPM |
* Specifications can be changed without prior notification.
* You may have distortion or signal noise when you use nonstandard or other brands’ accessories. We strongly recommend you use only the authorized accessories which we supply.
* The ST algorithm has been tested for accuracy of the ST segment data. The significance of the ST segment changes needs to be determined by a veterinarian.
Close
● Accessories
| Item Code | Item Description | Buy Now | ||
|---|---|---|---|---|
| wdt_ID | Item Image | Item Code | Item Description | Buy Now |
| 1 |
|
B-CBL-EP | BM5Vet and BM7Vet ECG extension cable for esophageal probe & 3 lead ECG cable | Buy Now |
| 2 |
|
B-AECG5 | 5 lead All In One ECG cable | Buy Now |
| 3 |
|
B-WIRE-N | 3 lead ECG cable (alligator type) – New | Buy Now |
| 4 |
|
B-SPCBL-N | SpO2 extension cable | Buy Now |
| 5 |
|
B-SPO2-R | Transflectance SpO2 probe for veterinary (black) | Buy Now |
| 6 |
|
B-SPO2-V | SpO2 multi-site Y sensor | Buy Now |
| 7 |
|
B-NBPCBL | NIBP extension tube | Buy Now |
| 8 |
|
B-CCUFF | NIBP child cuff (arm circumference: 20.5~28.5 cm) | Buy Now |
| 9 |
|
B-PCUFF | NIBP pediatric cuff (arm circumference: 13.8~21.5 cm) | Buy Now |
| 10 |
|
B-ICUFF | NIBP infant cuff (arm circumference: 9~14.8 cm) | Buy Now |
| 11 |
|
B-EPRB-XS | Esophageal probe with 3-lead ECG and temperature, extra small size ● 20 inches - from where the transparent tube goes into the gray plastic to the end of the probe ● 1.75 inch apart - between the metal contacts |
Buy Now |
| 12 |
|
B-EPRB-M | Esophageal probe with 3-lead ECG and temperature, medium size ● 36 inches - from where the transparent tube goes into the gray plastic to the end of the probe ● 2.75 inches apart - between the metal contacts |
Buy Now |
| 13 |
|
TEM-PRV-R | Temperature probe (Esophageal/Rectal Type) * Veterinary use only |
Buy Now |
| 14 |
|
TRANS | Power transformer (DC adaptor, output: +18V, 2.8A) |
Buy Now |
| 15 |
|
PC-A (V) | Power cable | Buy Now |
| 17 |
|
BM-BAT-7(N) | Battery Console Li-ion 1 Line, 6 Cell, 10.8V, 6500mA/h | Buy Now |
| 18 |
|
B-NCUFF-SET | NIBP neonate cuffs (1 of each, #1 - #5) | Buy Now |
| 19 |
|
B-NCUFF1 | NIBP neonate cuff #1 | Buy Now |
| 20 |
|
B-NCUFF2 | NIBP neonate cuff #2 | Buy Now |
| 21 |
|
B-NCUFF3 | NIBP neonate cuff #3 | Buy Now |
| 22 |
|
B-NCUFF4 | NIBP neonate cuff #4 | Buy Now |
| 23 |
|
B-NCUFF5 | NIBP neonate cuff #5 | Buy Now |
| 24 |
|
BM-PP | BM paper (10 rolls/box) | Buy Now |
| 25 |
|
MX4810 | C-Fusor® 1000ml pressure infusor: complete with squeeze bulb and pressure gauge | Buy Now |
| 26 |
|
MX95114_IC-6P-MX0 | AAMI IBP Adapter Cable - Compatible with Transtar reusable single channel cable(MX95114) | Buy Now |
| 27 |
|
MX800 | Modular transducer mounting plate (1 each) | Buy Now |
| 28 |
|
MX240 | Pole clamp for mounting a transducer plate (fits 3/4" to 1-1/2" I.V. pole) | Buy Now |
| 29 |
|
MX9505T | TranStar® 80" single line monitoring kit | Buy Now |
| 30 |
|
B-ACUFF-L | NIBP adult cuff large (arm circumference: 35.5~46 cm) | Buy Now |
| 31 |
|

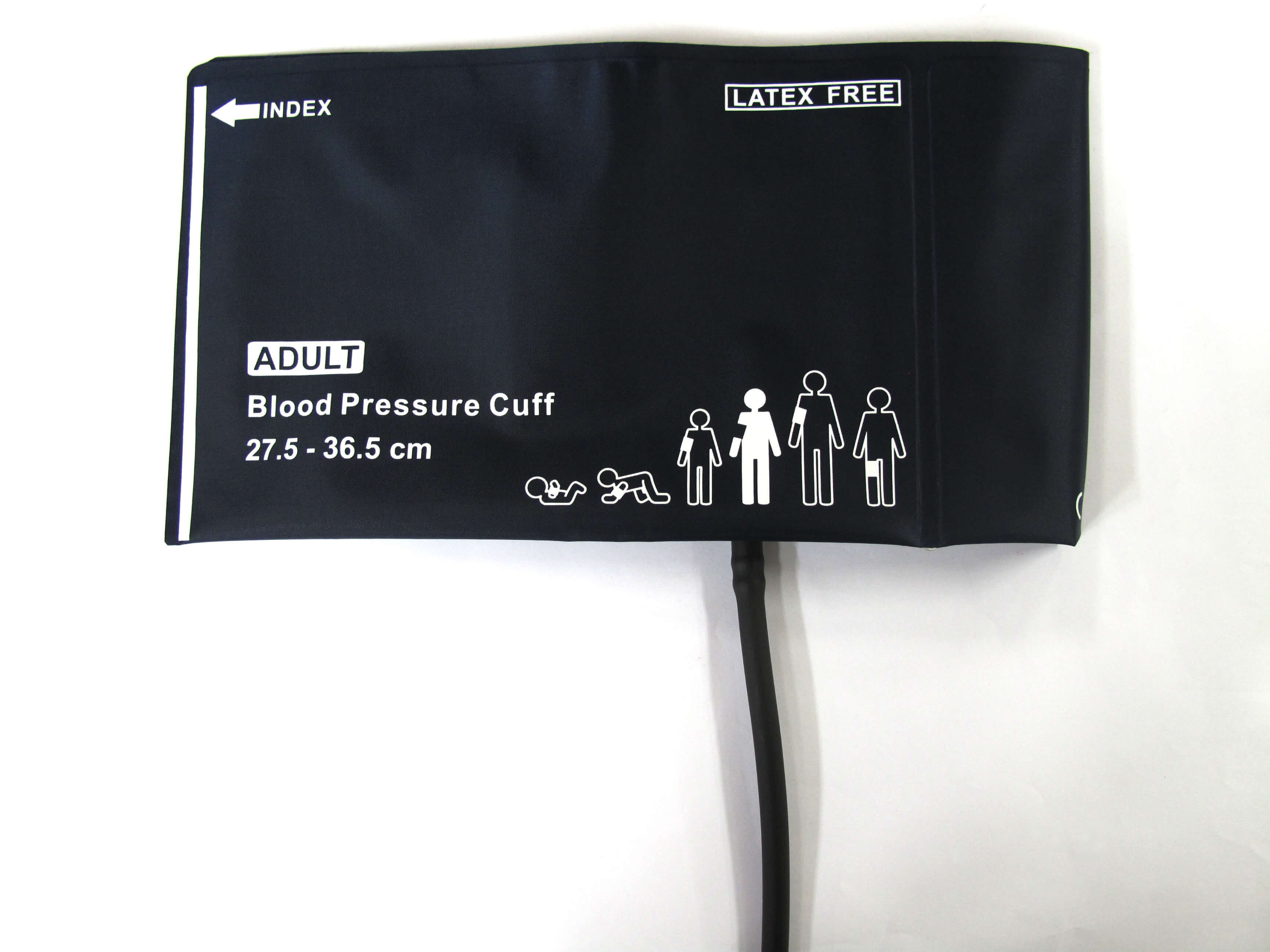

B-ACUFF | NIBP adult cuff (arm circumference: 27.5~36.5 cm) | Buy Now |
| 46 |
|
DGA-WT | Water trap | Buy Now |
| 47 |
|
DGA-SL | Sample line with Luer lock (8') | Buy Now |
| 48 |
|
DGA-AAS | Airway adapter (straight) | Buy Now |
| 49 |
|
DGA-AAL | Airway adapter (L type) | Buy Now |
| 50 |
|
BM-CART-H | BM series rolling cart with cable hanger (90-day warranty) | Buy Now |
| 51 |
|
USB-WIFI24 | USB WiFi dongle (2.4 GHz) | Buy Now |
| 52 |
|
B-SPO2-CLIP | Replacement clip for B-SPO2-V or OXW-SPO2-V | Buy Now |
| 53 |
|
BM-WM | Wall Mount for BM Series Monitor | Buy Now |
| 54 |
|
B-WIRE-SA | 3 lead ECG cable (Snap type) | Buy Now |
| 55 |
|
B-ME-S | ECG monitoring electrode snap type (30 electrodes/pouch) | Buy Now |
| 56 |
|
B-AECG | 3-Lead All in one ECG Cable | Buy Now |
| 57 |
|
ECG-GEL | ECG GEL (260ML) | Buy Now |
Close
● BT-Link Pro Download
Close
Product Highlights
Multi-Parameter
ECG, SpO2, NIBP, Respiration, 2 Temperatures, and 2 IBPs
Dual Gas Sensor
Dual gas sensor measuring ETCO2 and anesthetic gas included
Arrhythmia Analysis
13 kinds of arrhythmia analysis
Touch Screen
12.1″ color TFT touch screen with 4 wave forms
Central Monitoring
BT-Link Pro / Mobile for real-time monitoring and data recording
Best Warranty
Industry’s longest warranty – 4 years
Quick Link
● Materials Download
BM7Vet Equine Multi-Parameter Monitor
| wdt_ID | Type | Download |
|---|---|---|
| 1 | Leaflet | Download |
| 2 | User Manual | Download |
| 3 | Bionet BM Vet Elite Series Accessory List | Download |
| 4 | NIBP Guideline | Download |
| 6 | SunTech Advantage VET Paper | Download |
| 8 | Bionet Veterinary Monitor Power and Battery Guide | Download |
| 9 | Bionet Veterinary Monitor BM Vet Elite Series Quick Guide | Download |
| 10 | Bionet Dual Gas Module Quick Guide | Download |
| 11 | Quick Reference Guide for Networking the BIONET BM Vet Elite Series | Download |
Dual Gas Sensor
Close
● Videos
BIONET BM VET Veterinary Multi-Parameter Monitor – Introduction and Walkthrough
How to connect BT-Link Pro to Bionet Veterinary Monitor
Bionet BT-Link Pro Software Overview
How to use BT-Link Pro Software
How to use BT-Link Mobile for Android
How to use BT-Link Mobile for iOS
Bionet BT-Link Mobile – Server vs Client Mode
Close
● Specifications
General
BM7Vet Elite Multi-Parameter Monitor
| wdt_ID | Feature | Specification |
|---|---|---|
| 73 | Display, Resolution | 12.1' Wide color TFT LCD, (1024 x 768 pixels) |
| 74 | Dimension, Weight | 324 (W) x 257 (H) x 218 (D) mm, Approx. 4.5 kg |
| 75 | Trace | 6 waveforms: 2*ECG, SpO2, RR or EtCO2, 2*IBP Sweep speed : 6.25, 12.5, 25, 50 mm/sec |
| 77 | Indicators | Categorized alarms (3 priority levels) Visual alarm lamp handle QRS beep & SpO2 pulse beep Percent(%) SpO2 pitch tone Battery status, external power LED Touch screen, rotary knob |
| 78 | Interfaces | Power supply: AC 100 - 240V (50/60Hz) DC input connector : 18VDC, 2.8A LAN digital output for transferring data External HDMI monitor connection USB barcode reader USB memory data storage / Software Upgrade |
| 79 | Battery | Rechargeable Li-ion battery, 10.8V, 6500mAh 2 hours for continuous operation |
| 80 | Thermal Printer (Optional) | Speed: 25, 50mm/sec paper width: 58mm |
| 82 | Data Storage | 168 hours trends, 20 cases of 10 sec alarm waveform |
| 83 | Language | English, French, Spanish, Italian, German, Chinese, Russian, Czech, Polish, Turkish, Romanian, Portuguese, Bulgarian, Hungarian, Korean, Japanese, Greek |
| 84 | Standard Accessories | 3 lead vet ECG cable - 1 ea 5 lead vet ECG cable - 1 ea Dual Gas accessories (water trap, patient sample line/adapter, mount) IBP transducer connection cable IBP disposable preasure transducer kit NIBP extension hose (3m) - 1 ea NIBP vet cuff Neonate disposable #1 - #5 - 1 set NIBP vet cuff infant (reusable) - 1 ea NIBP Large Adult Cuff - 1 ea NIBP Adult Cuff - 1 ea SpO2 extension cable (2m) - 1 ea Esophageal ECG probe with temperature - 1 ea Extension cable for esophageal probe - 1 ea Transflectance SpO2 probe - 1 ea Temperature probe (rectal/esophageal) - 1 ea Reusable multisite SpO2 probe - 1 ea DC adapter (18 VDC, 2.8 A) - 1 set BT-Link Pro automated record keeping software - 1 ea |
| 85 | Optional Accessories | Temperature probe (skin) ECG alligator clip (5ea) 3 lead ECG cable (snap type) |
Dual Gas Sensor
| wdt_ID | Feature | Specification |
|---|---|---|
| 1 | CO2 | |
| 2 | - Range | 0 – 100 mmHg; 0 – 13.3 kPa; 0-10% CO2 STPD (standard temperature and pressure dry) |
| 3 | - Accuracy | ± (0.2 vol% + 4% relative) |
| 4 | - Rise Time | 400 ms (average) |
| 5 | Anesthetic Agents | |
| 6 | - Gases | Isoflurane, Enflurane, Halothane, Desflurane, Sevoflurane |
| 7 | - Range | Iso., Enf., Hal., Sev.: 0 – 6% Des.: 0 – 18% |
| 8 | - Resolution | 0 .01% |
| 9 | - Accuracy | ± (0.15% vol% + 4% relative) |
| 10 | - Rise Time | 450 ms (average) |
| 11 | Calibration | Factory calibrated |
| 12 | Power Up Time | 30 sec |
| 13 | Delay Time | < 4 sec |
| 14 | Dimensions | 175mm x 85mm x 50mm (L x W x H) |
| 15 | Respiration | |
| 16 | - Range | 0-150 breaths/min |
| 17 | - Accuracy | ±1 breath/min |
| 18 | Flow Rate | |
| 19 | - Range | 170 ml/min |
| 20 | - Accuracy | ±20ml/min |
| 21 | Environment Condition | |
| 22 | - Operating Temperature | 15 – 35°C |
| 23 | - Storage Temperature | -5 to 50°C |
| 24 | - Ambient Humidity | 15-95% RH |
| 25 | - Ambient Pressure | 70kPa to 106kPa (525mmHg to 795mmHg) |
| 26 | Weight | 400g |
| 53 | Water Removal System | Water trap tank |
| 54 | Sampling Line | Anesthetic gas tolerant standard sample line |
| 55 | Appication | Veterinary use Only Species: Canine, Feline, Equine |
Performance
| wdt_ID | ECG | Specification |
|---|---|---|
| 88 | Lead Type | 3-lead 5-lead |
| 89 | Lead Selection | 3-lead: I, II, III 5-lead: I, II, III, aVR, aVL, aVF, V |
| 91 | ECG Waveforms | 3-lead: 1 channel 5-lead: 1/2/7 channels |
| 93 | Heart Rate Range | 30 to 300 BPM |
| 94 | Heart Rate Accuracy | ± 1 BPM or ± 1%, whichever is greater |
| 95 | Sweep Speed | 6.25, 12.5, 25, 50 mm/sec |
| 96 | Filter | Diagnosis: 0.05 ~ 150 Hz Monitoring: 0.5 ~ 40 Hz Moderate: 0.5 ~ 25 Hz Maximum: 5 ~ 25 Hz |
| 97 | S-T Segment Detection Range | -2.0 to 2.0 mV |
| 98 | Arrhythmia Analysis | ASYSTOLE, VTACH, V-FIB, BIGEMINY, ACCVENT, COUPLET, IRREGULAR, PAUSE, PVC, RONT, TRIGMINY, VBRADY, SHORTRUN |
| 99 | Protection | Against electrosurgical interference and defibrillation |
| wdt_ID | Respiration | Specification |
|---|---|---|
| 100 | Method | Thoracic impedance |
| 101 | Channel Selection | RA-LA or RA-LL |
| 102 | Measurement Range | 5 - 120 breath per minute |
| 103 | Accuracy | ±1 breath per minute |
| 104 | Apnea Alarm | Yes |
| wdt_ID | SpO2 | Specification |
|---|---|---|
| 105 | Saturation Range | 0 to 100 % |
| 106 | Saturation Accuracy | 70 to 100% ±2 digits, 0 to 69% unspecified |
| 107 | Pulse Rate Range | 18 to 450 BPM |
| 108 | Pulse Rate Accuracy | ±2 BPM |
| wdt_ID | NIBP - Suntech | Specification |
|---|---|---|
| 110 | Method | Oscillometric |
| 111 | Operation Mode | Manual / Automatic / Continuous |
| 112 | Pressure Range | 0 to 300mmHg (accuracy : ±3mmHg) |
| 113 | Measurement Range | Systolic: 40 to 260 mmHg MAP: 26 to 220 mmHg Diastolic: 20 to 200 mmHg |
| 114 | Initial Inflation Pressure | Large animal mode: 160mmHg (default), Variable from 120 - 280mmHg Small animal mode: 160mmHg (default), Variable from 60 - 280mmHg |
| 115 | Pulse Rate Range | 25-300 BPM (Beat Per Minute) |
| wdt_ID | Temperature | Specification |
|---|---|---|
| 117 | Channels | 2 |
| 118 | Measurement Range | 0 to 50°C (32°F to 122°F) |
| 119 | Accuracy | 25 to 50°C: ±0.1°C 0 to 24°C: ±0.2°C |
| 120 | Compatibility | 98ME04GA603 temperature probes |
| wdt_ID | IBP | Specification |
|---|---|---|
| 126 | Channels | 2 |
| 127 | Measurement Range | -50 to 300 mmHg |
| 128 | Accuracy | 4% of reading or ± 4 mmHg, whichever is greater |
| 129 | Pulse Rate Range | 0 to 300 BPM |
| 130 | Zero Balancing Range | Range: ± 200 mmHg Accuracy: ± 1 mmHg Drift: ± 1 mmHg over 24 hours |
| 131 | Transducer Sensitivity | 5μV/V/mmHg |
| wdt_ID | Dual Gas - Bionet | Specification |
|---|---|---|
| 110 | Method | Sidestream |
| 111 | Gas | CO₂, Iso, Sev, Enf, Hal, Des |
| 112 | Range, Accuracy | CO₂: 0-10%, ± (0.2 vol% + 4% relative) Iso/Sev/Enf/Hal: 0-6%, ± (0.15% vol% + 4% relative) Des: 0-18%, ± (0.15% vol% + 4% relative) |
| 113 | Respiration Rate | 0-150 BPM ±1 BPM |
* Specifications can be changed without prior notification.
* You may have distortion or signal noise when you use nonstandard or other brands’ accessories. We strongly recommend you use only the authorized accessories which we supply.
* The ST algorithm has been tested for accuracy of the ST segment data. The significance of the ST segment changes needs to be determined by a veterinarian.
Close
● Accessories
| Item Code | Item Description | ||
|---|---|---|---|
| wdt_ID | Item Image | Item Code | Item Description |
| 1 |  |
B-CBL-EP | BM5Vet and BM7Vet ECG extension cable for esophageal probe & 3 lead ECG cable |
| 2 |  |
B-AECG5 | 5 lead All In One ECG cable |
| 3 |  |
B-WIRE-N | 3 lead ECG cable (alligator type) – New |
| 4 |  |
B-SPCBL-N | SpO2 extension cable |
| 5 |  |
B-SPO2-R | Transflectance SpO2 probe for veterinary (black) |
| 6 |  |
B-SPO2-V | SpO2 multi-site Y sensor |
| 7 |  |
B-NBPCBL | NIBP extension tube |
| 8 |  |
B-CCUFF | NIBP child cuff (arm circumference: 20.5~28.5 cm) |
| 9 |  |
B-PCUFF | NIBP pediatric cuff (arm circumference: 13.8~21.5 cm) |
| 10 |  |
B-ICUFF | NIBP infant cuff (arm circumference: 9~14.8 cm) |
| 11 |  |
B-EPRB-XS | Esophageal probe with 3-lead ECG and temperature, extra small size (L:45mm, D:6mm) |
| 12 | |
B-EPRB-M | Esophageal probe with 3-lead ECG and temperature, medium size (L:70mm, D:8mm) |
| 13 |  |
TEM-PRV-R | Temperature probe (Esophageal/Rectal Type) * Veterinary use only |
| 14 |  |
TRANS | Power transformer (DC adaptor, output: +18V, 2.8A) |
| 15 |  |
PC-A (V) | Power cable |
| 17 |  |
BM-BAT-7(N) | Battery Console Li-ion 1 Line, 6 Cell, 10.8V, 6500mA/h |
| 18 |  |
B-NCUFF-SET | NIBP neonate cuffs (1 of each, #1 - #5) |
| 19 |  |
B-NCUFF1 | NIBP neonate cuff #1 |
| 20 |  |
B-NCUFF2 | NIBP neonate cuff #2 |
| 21 |  |
B-NCUFF3 | NIBP neonate cuff #3 |
| 22 |  |
B-NCUFF4 | NIBP neonate cuff #4 |
| 23 |  |
B-NCUFF5 | NIBP neonate cuff #5 |
| 24 |  |
BM-PP | BM paper (10 rolls/box) |
| 25 |  |
MX4810 | C-Fusor® 1000ml pressure infusor: complete with squeeze bulb and pressure gauge |
| 26 |  |
MX95114 | TranStar® reusable single channel cable |
| 27 |  |
MX800 | Modular transducer mounting plate (1 each) |
| 28 |  |
MX240 | Pole clamp for mounting a transducer plate (fits 3/4" to 1-1/2" I.V. pole) |
| 29 |  |
MX9505T | TranStar® 80" single line monitoring kit |
| 30 |  |
B-ACUFF-L | NIBP adult cuff large (arm circumference: 35.5~46 cm) |
| 31 |  |
B-ACUFF | NIBP adult cuff (arm circumference: 27.5~36.5 cm) |
| 46 |  |
DGA-WT | Water trap |
| 47 |  |
DGA-SL | Sample line with Luer lock (8') |
| 48 |  |
DGA-AAS | Airway adapter (straight) |
| 49 |  |
DGA-AAL | Airway adapter (L type) |
| 50 |  |
BM-CART-H | BM series rolling cart with cable hanger (90-day warranty) |
| 51 |  |
USB-WIFI24 | USB WiFi dongle (2.4 GHz) |
| 52 |  |
B-SPO2-CLIP | Replacement clip for B-SPO2-V or OXW-SPO2-V |
| 53 |  |
BM-WM | Wall Mount for BM Series Monitor |
Close
● BT-Link Pro Download
Close
University of Minnesota Center for Magnetic Resonance Research / Minnesota
- Product(s): BM7Vet PRO Monitor with Dual Gas Module
The product is very user friendly.
We found it easy to set-up, and the unit had all the features we needed.
Family Friends Veterinary Hospital / Michigan
- Product(s): BM7Vet PRO Monitor
So far, we have used our BM7Vet Pro monitor for over 6 months. We loved the device so much that we purchased another! The monitor is very intuitive and easy to use for anesthetic monitoring.
Alpine Animal Hospital / Idaho
- Product(s): BM7Vet PRO Monitor
It’s a nice machine that was easy to set up and easy to use!
Stonebridge Family Vet / Texas
- Product(s): BM5Vet PRO Monitor
After using our BM5Vet PRO monitor, I will never purchase a product from anywhere else. What we have received is beyond stellar.
Care Center / Ohio
- Product(s): BM5Vet PRO Monitor
We have many Bionet monitors and everyone loves them. They are very reliable and easy to use.
Metro Paws Animal Hospital / Texas
- Product(s): BM3Vet PRO Monitor
I love my Bionet BM3Vet PRO for durability – we’ve have had other types of monitors and find that we simply can’t depend on them. When you work with animals, reliability matters most.
Miller Veterinary Services / Georgia
- Product(s): BM3Vet PRO Monitor
We love our Bionet BM3Vet Pro. It is one of the best surgical monitors we have ever used (and in the 20 years that I have been in this field that is a lot of monitors!) I would highly recommend the BM3Vet PRO to any hospital. From the durability of the leads to the touch screen monitor, my staff really likes this piece of equipment.
Keokuk County Veterinary Clinic / Iowa
- Product(s): BM3Vet PRO Monitor
It was very exciting to get and fairly easy to assemble. The quick guide was very handy and we were able to use it right away on surgery. I think it will be very useful for years to come, and will be valuable in many different situations.
The new BM7Vet Equine includes a Dual Gas Capnography module which measures both ETCO2 and Anesthetic Gas concentration. Also included is a complete direct, invasive arterial blood pressure kit with necessary monitoring components to measure invasive blood pressure. For your non-invasive blood pressure monitoring needs, we include a wide range of cuff sizes. Our 5 lead ECG cable provides 48 hour full disclosure ECG recording of up to 7 concurrent channels. 12.1” wide color monitor displays all the vital signs that you want in different colors. Interface the BM5Vet Elite Equine with BT-Link PRO to record and manage all monitor data.
Intended Use: To monitor vital signs in veterinary patients (equine), including: Dual Gas, IBP, ECG, SpO2, NIBP, Respiration, and Temperature.
Superior Advantages
- 5 Lead ECG, SpO2, NIBP, IBP, Dual Gas (ETCO2, Anesthetic Gas Concentration), Respiration, and Dual Temperature
- 12.1″ color TFT touch screen with 6 wave forms (1024 X 768 pixels)
- Individual sweep speed setting for each parameter
- Remembers your settings
- Multiple display modes available
- Screen Freeze ON/OFF
Enhanced Data Management
- 168 full hours of trend data can be stored
- Easy network connectivity, supports wireless LAN
- Search for available Wi-Fi networks
- BT-Link Pro and BT-Link Mobile for real-time monitoring and recording
- USB memory storage
Close
High-Performance Measurement
- 48 hours of full disclosure waveforms provided
- ST level, PVC count real-time display
- 13 kinds of arrhythmia analysis
Transportable
- Li-ion rechargeable battery with longer lifetime (Up to 2hrs for continuous operation)
- External HDMI output for large screen
- 2 USB Ports
- SD Card Slot
Industry’s longest warranty – 4-YEAR WARRANTY (6 months on accessories)
Includes:
BM7Vet Elite Main Unit, Equine Accessries (Dual Gas Sensor, IBP Accessories, NIBP Large Adult Cuff, NIBP Adult Cuff), Temperature Probe (Esophageal/Rectal), SpO2 Probe (Transflectance), Extension cable for esophageal probe, 3 Lead Vet ECG Cable (alligator type), SpO2 Probe (Y-Clip) and Extension Cable, NIBP Vet Infant Cuff, NIBP Extension Hose, Chart Paper (X2), USB Wi-Fi dongle, Power Adaptor & Power Cord, Operation Manual, BT-Link Pro Software, and 4-Year Warranty Card.
Caution: Federal law restricts this device to sale by or on the order of a licensed veterinarian.
BIONET BM VET Veterinary Multi-Parameter Monitor – Introduction and Walkthrough
How to connect BT-Link Pro to Bionet Veterinary Monitor
Bionet BT-Link Pro Software Overview
How to use BT-Link Pro Software
How to use BT-Link Mobile for Android
How to use BT-Link Mobile for iOS
Bionet BT-Link Mobile – Server vs Client Mode
- Overview
-
The new BM7Vet Equine includes a Dual Gas Capnography module which measures both ETCO2 and Anesthetic Gas concentration. Also included is a complete direct, invasive arterial blood pressure kit with necessary monitoring components to measure invasive blood pressure. For your non-invasive blood pressure monitoring needs, we include a wide range of cuff sizes. Our 5 lead ECG cable provides 48 hour full disclosure ECG recording of up to 7 concurrent channels. 12.1” wide color monitor displays all the vital signs that you want in different colors. Interface the BM5Vet Elite Equine with BT-Link PRO to record and manage all monitor data.
Intended Use: To monitor vital signs in veterinary patients (equine), including: Dual Gas, IBP, ECG, SpO2, NIBP, Respiration, and Temperature.
Superior Advantages
- 5 Lead ECG, SpO2, NIBP, IBP, Dual Gas (ETCO2, Anesthetic Gas Concentration), Respiration, and Dual Temperature
- 12.1″ color TFT touch screen with 6 wave forms (1024 X 768 pixels)
- Individual sweep speed setting for each parameter
- Remembers your settings
- Multiple display modes available
- Screen Freeze ON/OFF
Enhanced Data Management
- 168 full hours of trend data can be stored
- Easy network connectivity, supports wireless LAN
- Search for available Wi-Fi networks
- BT-Link Pro and BT-Link Mobile for real-time monitoring and recording
- USB memory storage
CloseHigh-Performance Measurement
- 48 hours of full disclosure waveforms provided
- ST level, PVC count real-time display
- 13 kinds of arrhythmia analysis
Transportable
- Li-ion rechargeable battery with longer lifetime (Up to 2hrs for continuous operation)
- External HDMI output for large screen
- 2 USB Ports
- SD Card Slot
Industry’s longest warranty – 4-YEAR WARRANTY (6 months on accessories)
Includes:
BM7Vet Elite Main Unit, Equine Accessries (Dual Gas Sensor, IBP Accessories, NIBP Large Adult Cuff, NIBP Adult Cuff), Temperature Probe (Esophageal/Rectal), SpO2 Probe (Transflectance), Extension cable for esophageal probe, 3 Lead Vet ECG Cable (alligator type), SpO2 Probe (Y-Clip) and Extension Cable, NIBP Vet Infant Cuff, NIBP Extension Hose, Chart Paper (X2), USB Wi-Fi dongle, Power Adaptor & Power Cord, Operation Manual, BT-Link Pro Software, and 4-Year Warranty Card.Caution: Federal law restricts this device to sale by or on the order of a licensed veterinarian.
- Specifications
-
- Accessories
-
- Videos
-
BIONET BM VET Veterinary Multi-Parameter Monitor – Introduction and Walkthrough
How to connect BT-Link Pro to Bionet Veterinary Monitor
Bionet BT-Link Pro Software Overview
How to use BT-Link Pro Software
How to use BT-Link Mobile for Android
How to use BT-Link Mobile for iOS
Bionet BT-Link Mobile – Server vs Client Mode
- Downloads
-
Search
Quick Link
BIONET BM Veterinary Multi-Parameter Monitor – Introduction and Walkthrough
How to use BT-Link
How to use BT-Link Mobile
Contact Us
- Toll Free
1-877-9-BIONET (1-877-924-6638) - Tel
714-734-1760 - Fax
714-734-1761 - Sales
[email protected] - Customer service
[email protected]
