PortView

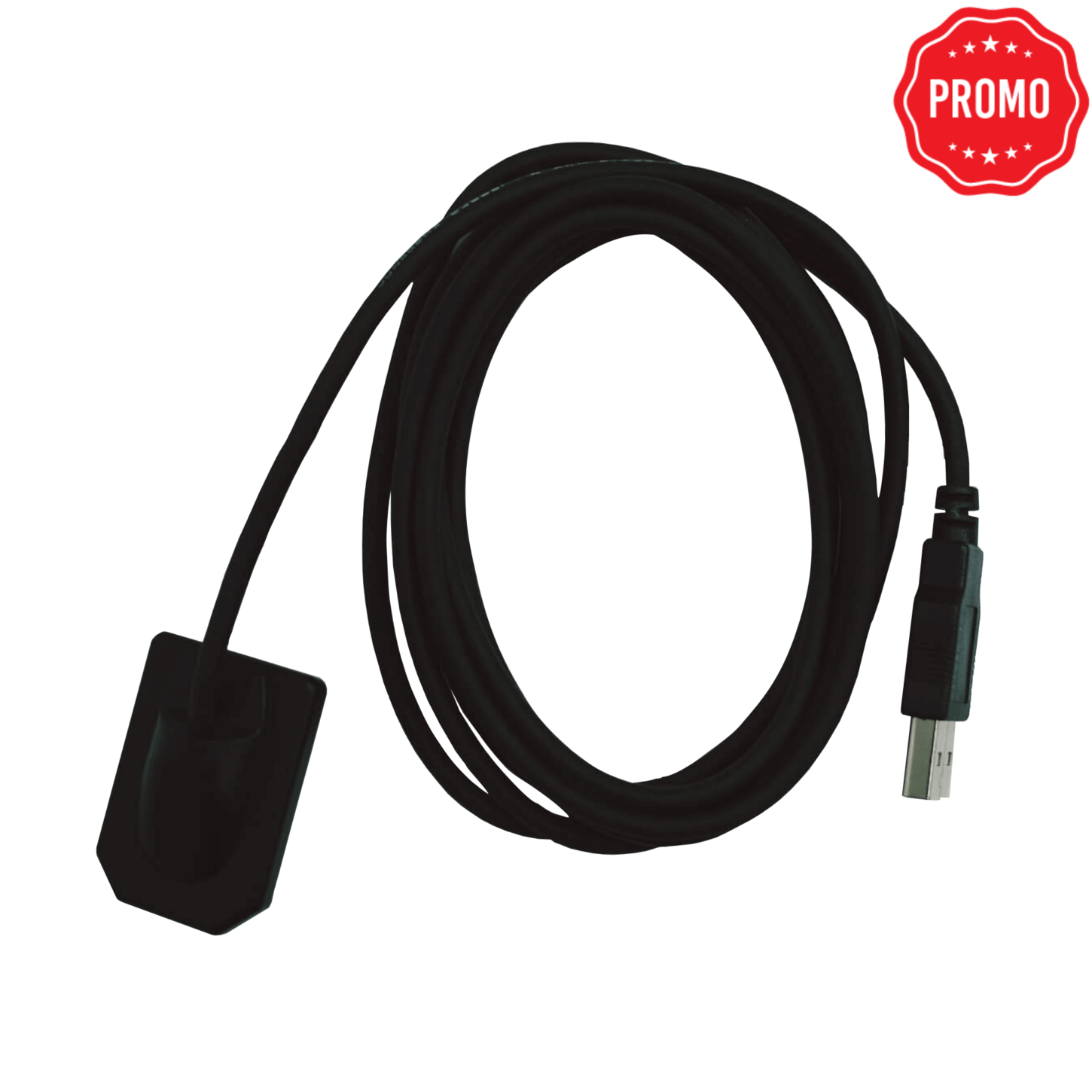

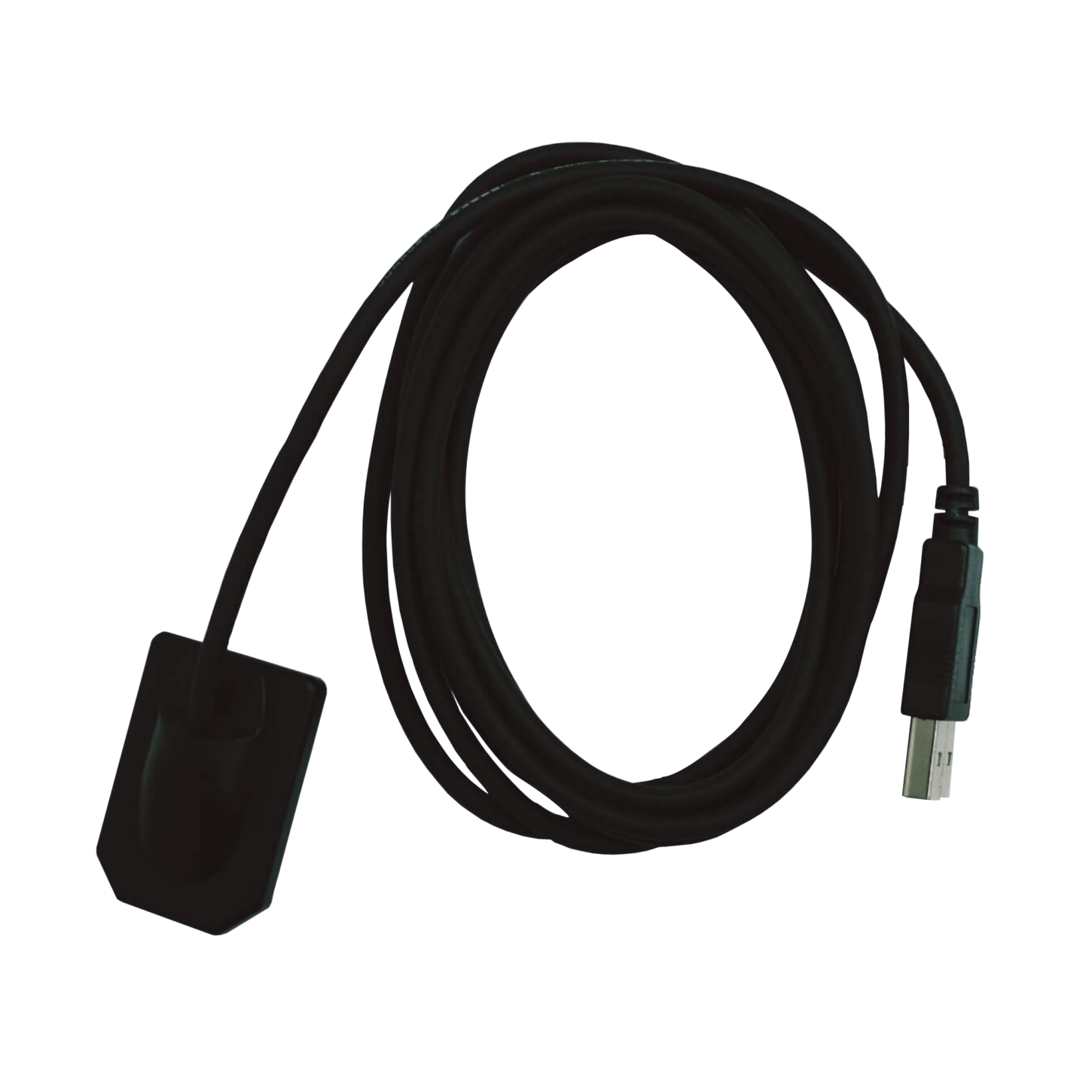

Digital Dental Intra-Oral Sensor

The PortView intra-oral sensor brings your dental radiography to life! Our PortView sensors comes standard with CMOS technology to give you superior image quality, beveled corners for those hard-to-reach areas and IP67 waterproof rating (that’s really good, we promise). The PortView imaging software also comes standard with any sensor purchase, as well as lifetime support. It has a veterinary interface with multiple species options and a quick, no-guessing layout to make use and navigation a breeze!

or
BUY NOW
Loading

Product Highlights

2 Sensor Size Options

Available in Size 1 & 2

High Resolution

Size 2: 1,300 x 1,706 pixels
Size 1: 1,000 x 1,506 pixels

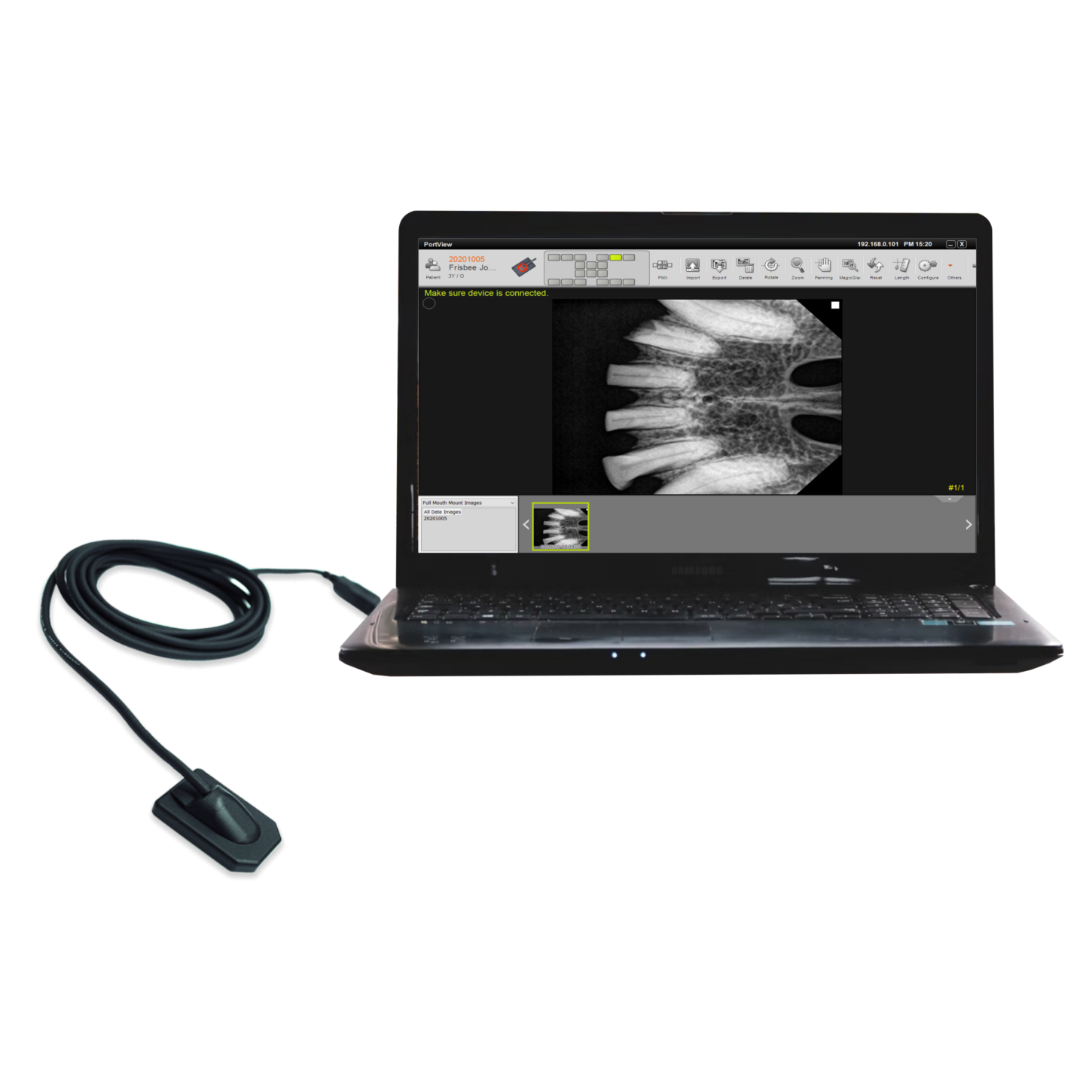

Software

Included, veterinary-specific imaging software

Waterproof

Waterproof rating of IP67

Connection

Directly to ZEN-PX4 Vet or PC

Warranty

2 year warranty
Optional Bite Replacement Plan

Quick Link

The PortView intra-oral sensor brings your dental radiography to life! Our PortView sensors comes standard with CMOS technology to give you superior image quality, beveled corners for those hard-to-reach areas and IP67 waterproof rating (that’s really good, we promise). The PortView imaging software also comes standard with any sensor purchase, as well as lifetime support. It has a veterinary interface with multiple species options and a quick, no-guessing layout to make use and navigation a breeze!

Pixel Size

  • 20×20 µm

High Resolution

  • 20 Lp/mm typ

Dynamic Range

  • 57 dB (size1) / 75 dB (size2)

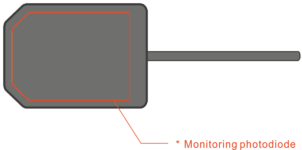

Monitoring Photodiode

  • The monitoring photodiode is arranged along the entire circumference of the effective pixel area and this will monitor dose rates. When you get an image, if the output of the monitoring photodiode gets higher than a certain threshold, you can get an image automatically via USB 2.0 Interface.
Monitoring photodiode

Direct Connection with ZEN-PX4 VET

Portview_connection_ZEN-PX4

Waterproof

  • Equivalent to IP67



NEED EXTRA PROTECTION?
CONSIDER OUR PORTVIEW BITE PROTECTION PLAN!

  • Covers 1 traumatic bite and any other non-manufacturer defect which may occur during the sensor warranty period of 2 years.
  • Damaged sensor to be returned to Bionet upon the replacement of a new sensor.
  • After replacement, the remainder of the original 2 year warranty will be applied to the new sensor.
  • Must be purchased within 15 days from the date of sale.
  • Click HERE to Purchase
Loading
Overview

The PortView intra-oral sensor brings your dental radiography to life! Our PortView sensors comes standard with CMOS technology to give you superior image quality, beveled corners for those hard-to-reach areas and IP67 waterproof rating (that’s really good, we promise). The PortView imaging software also comes standard with any sensor purchase, as well as lifetime support. It has a veterinary interface with multiple species options and a quick, no-guessing layout to make use and navigation a breeze!

Pixel Size

  • 20×20 µm

High Resolution

  • 20 Lp/mm typ

Dynamic Range

  • 57 dB (size1) / 75 dB (size2)

Monitoring Photodiode

  • The monitoring photodiode is arranged along the entire circumference of the effective pixel area and this will monitor dose rates. When you get an image, if the output of the monitoring photodiode gets higher than a certain threshold, you can get an image automatically via USB 2.0 Interface.
Monitoring photodiode

Direct Connection with ZEN-PX4 VET

Portview_connection_ZEN-PX4

Waterproof

  • Equivalent to IP67



NEED EXTRA PROTECTION?
CONSIDER OUR PORTVIEW BITE PROTECTION PLAN!

  • Covers 1 traumatic bite and any other non-manufacturer defect which may occur during the sensor warranty period of 2 years.
  • Damaged sensor to be returned to Bionet upon the replacement of a new sensor.
  • After replacement, the remainder of the original 2 year warranty will be applied to the new sensor.
  • Must be purchased within 15 days from the date of sale.
  • Click HERE to Purchase
Specifications
